Grundbausatz M1
- 5/6 Präzisionspendeluhr
- 30 Tage Gangdauer
- Maße: 102 x 27 x 14,5 cm (H x B x T)
- Zahnräder aus vergoldetem Messing
- Triebe aus gehärtetem Stahl
- Sämtliche Räder in zehn Miniaturkugellagern aus Edelstahl gelagert
- Werkgestell aus hochfestem Aluminium mit dauerhaftem Oberflächenschutz durch extra harte Eloxalschicht
- Grahamhemmung mit gehärteten, nachstellbaren Stahlpaletten
- Invarpendel (temperaturkompensiert) mit massivem Pendelgewicht aus Edelstahl bzw. Bronze
- Antriebsgewicht aus massivem Wolfram
- Eloxiertes Aluminiumzifferblatt
- Lünette aus massiven Messing gedreht, poliert und glanzvernickelt. Alternativ aus massiver Bronce gedreht und einbrennlackiert.
- Gebläute Stahlzeiger
- Auf Wunsch erhalten Sie eine Metallplakette mit Ihrem Namen, die jedem Betrachter zeigt, wer diese Uhr zusammengebaut hat.
MECHANICA M1 CARBON
Already included in the limited special edition
– Rim, base and the cassette in the back with carbon inlays
The incomparable visual appearance of real carbon, gives a special hightech charm to the case.
– Anti-reflective glasses
For the first time, anti-reflective glasses find their way into a Mechanica model. Thanks to these elaborately manufactured panes, a glare-free view of the inside of the case is possible.

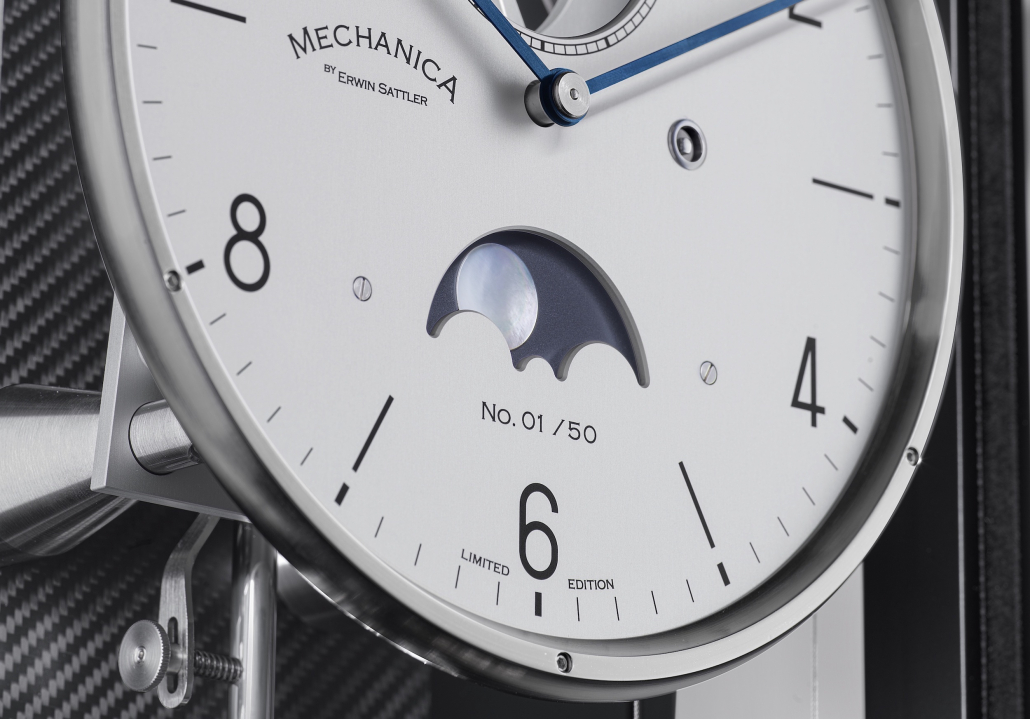

– Moon phase with mother of perl discs
The addition to a precision pendulum clock with the useful complication of the moon phase is also a visual highlight. The moon shines in full splendor thanks to the shimmering, hand-polished and also domed mother-of-pearl inlays.
– Twin barometer
The negative effects of air pressure fluctuations on the accuracy are balanced out with the new, symmetrically arranged double barometer instrument with aneroid cans.
– Pulley with ball bearings
The pulley with ball bearings offers not only visual appeal but has also two technical advantages: Its
ball bearings do not wear and keep friction to a minimum, which improves the accuracy of the
clock.
– Glass window in the top of the case
Incorporating a pane of mineral glass into the top allows a spotlight to illuminate the movement.
– Cutaway in the dial
The cutaway in the seconds subdial in conjunction with a milling in the top plate of the movement makes it possible to see the gold-plated gear wheels and the Graham escapement.
MECHANICA M1 CARBON – Limited Edition
Further upgrades and the instruction as a PDF
UPGRADE KIT
ESCAPEMENT LEVER WITH AGATE PALLETS AND ESCAPEMENT WHEEL
To reduce friction in the escapement, an option is to upgrade your clock with an escapement lever with agate pallets and matching escapement wheel.
Price 700,– Euro
Reduced Price 570.– Euro*
UPGRADE KIT
RUBIES FOR THE ESCAPEMENT LEVER BEARINGS
The longevity of the M1 can be enhanced with a set of rubies for the escapement lever bearings. The standard brass bushings will be replaced with non-wearing ruby bearings.
Price 180,– Euro
UPGRADE KIT
HAND-DOMED AND POLISHED HANDS
The domed, polished and blued hands are completely hand crafted. They will give your Mechanica a more elegant “face”.
Price 560,– Euro
Reduced Price 520,– Euro*
UPGRADE KIT
CERTIFICATED WEIGHTS FOR FINE REGULATION
With the certificated set of twelve weights an even more exact fine regulation is possible.
Price without wooden case 175,– Euro
Elegant wooden case with magnetic closure 95,– Euro
UPGRADE KIT
ADJUSTABLE PENDULUM SCALE
A horizontally adjustable pendulum scale. The kit allows to adjust the pendulum tip precisely to zero.
Price 290,– Euro
UPGRADE KIT
PENDULUM LENSE
A solid pendulum lense can be ordered as an optional extra for the pendulum. The fact that there is less air resistance means that the amplitude of oscillation, and consequently the rate, remain steadier. The lenses are numbered in sequence and can be fitted with the engraving either at the front or at the back. The lense is available in bronze or nickel finish.
Price 760,– Euro
Reduced Price 700,– Euro*
UPGRADE KIT
POLISHED CASE-HOLDING SCREWS
A further detail to add an elegant appearance to your M1, are the four case fitting screws with polished and blued center and two polished movement fixing screws.
Price 260,– Euro
Reduced Price 240,– Euro*
UPGRADE KIT
SET OF FINE-POLISHED SCREWS
The look of the movement can be further enhanced using these 4 gold-plated washers and the 24 fine-polished/fine-turned stainless-steel screws.
Price 270,– Euro
Reduced Price 260,– Euro*
ASSEMBLY BY THE MANUFACTURE
Price 600.- Euro
Numbers of the Mechanica M1 Carbon
In the „clock book“ that comes with every kit, you can read more about evolution and technology of mechanic clocks. Linen bound and printed on high quality paper.
Lean back and take some time. A complete version of the book is available as PDF. The first chapter is the complete instruction. The second chapter explains the technology and function of the Mechanica M1.
In order to give you the opportunity to technically and optically upgrade your new Mechanica M1, various accessories were already considered when planning the kit. With the following extras you can individualize your Mechanica M1 in the areas of durability, accuracy and optics.
The Mechanica M1 Carbon with moon phase is an exclusive special model, limited to 50 pieces. Due to the additional components, the assembly deviates from the “book to the clock” in certain places. Therefore, please consider the supplementary assembly instructions.
CALCULATION OF THE MOONPHASE DISPLAY
Month
- January
- February
- March
- April
- May
- June
- July
- August
- September
- October
- November
- December
Date
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
- 23
- 24
- 25
- 26
- 27
- 28
- 29
- 30
- 31
Year
- 2017
- 2018
- 2019
- 2020
- 2021
- 2022
- 2023
- 2024
FULL MOON CALENDAR
07. Jan
05. Feb
07. Mar
06. April
05. May
04. June
03. July
01. Aug
31. Aug
29. Sept
28. Oct
27. Nov
27. Dec
Price list
Mechanica M1 Carbon – Limited Edition –
Price list
Mechanica M1 Carbon – Limited Edition –
| MECHANICA M1 Carbon | Price | Reduced Price** |
| MECHANICA M1 clock kit | Black Varnish with carbon inlays | € 9.400.- | |
| UPGRADE KIT ESCAPEMENT LEVER WITH AGATE PALLETS AND ESCAPEMENT WHEEL To reduce friction in the escapement, an option is to upgrade your clock with an escapement lever with agate pallets and matching escapement wheel. | € 700.- | 570,– Euro |
| UPGRADE KIT RUBIES FOR THE ESCAPEMENT LEVER BEARINGS The longevity of the M1 can be enhanced with a set of rubies for the escapement lever bearings. The standard brass bushings will be replaced with non-wearing ruby bearings. | € 180.- | |
| UPGRADE KIT HAND-DOMED AND POLISHED HANDS The domed, polished and blued hands are completely hand crafted. They will give your Mechanica a more elegant “face”. | € 560.- | € 520.- |
| CERTIFICATED WEIGHTS FOR FINE REGULATION With the certificated set of twelve weights an even more exact fine regulation is possible | Price without wooden case 175,– Euro Elegant wooden case with magnetic closure 95,– Euro | |
| UPGRADE KIT ADJUSTABLE PENDULUM SCALE A horizontally adjustable pendulum scale. The kit allows to adjust the pendulum tip precisely to zero. | € 290.- | |
| UPGRADE KIT PENDULUM LENSE A solid pendulum lense can be ordered as an optional extra for the pendulum. The fact that there is less air resistance means that the amplitude of oscillation, and consequently the rate, remain steadier. The lenses are numbered in sequence and can be fitted with the engraving either at the front or at the back. The lense is available in bronze or nickel finish. | € 760.- | 700.- |
| UPGRADE KIT POLISHED CASE-HOLDING SCREWS A further detail to add an elegant appearance to your M1, are the four case fitting screws with polished and blued center and two polished movement fixing screws. | € 260.- | € 240.- |
| UPGRADE KIT SET OF FINE-POLISHED SCREWS The look of the movement can be further enhanced using these 4 gold-plated washers and the 24 fine-polished/fine-turned stainless-steel screws. | € 270.- | € 260.- |
| ASSEMBLY BY THE MANUFACTURE | € 600.- |
Prices incl. 19% VAT.
(* Reduced price – new order with retention/return of standard parts.)
