MECHANICA

M1

Price base clock kit
Black varnish
5.500,- Euro

Price base clock kit
Cherry or Walnut
5.000,- Euro

  • Share on Facebook
  • Share on WhatsApp
  • Share by Mail
  • Link to Instagram

The Mechanica M1 is constructed with the experience of more than 60 years in precision-clockmaking.

This innovative product allows you to build your personal timepiece.

The innovative Mechanica clockwork follows the tradition of old clock manufactories, as e.g. Strasser & Rhode, which has already delivered single unit parts for precision clocks to clockmakers at the end of the 19th century.

Today the component parts equipped with ball bearings also facilitate the assembly by non-clockmakers without any difficulties.

All needed tools are included in the clock kit.

To the order form

UpgradesPrice list VideoOrder Forms Contact

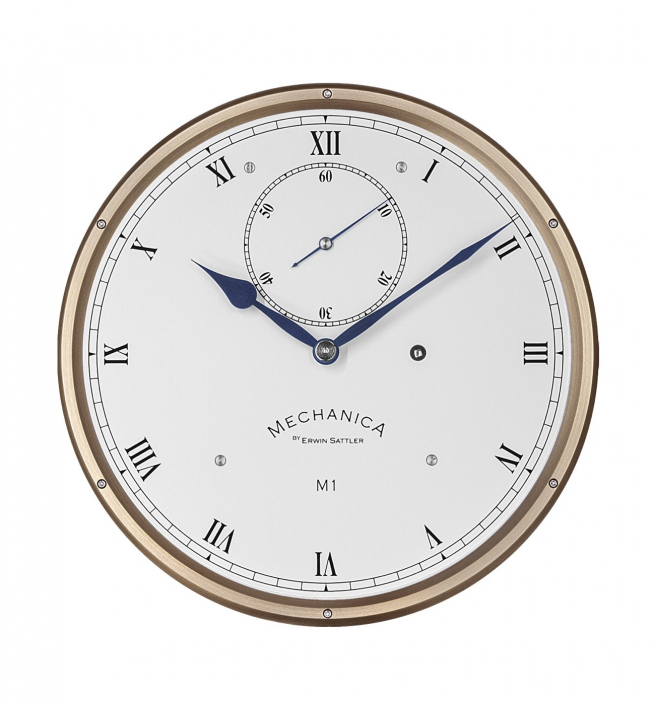

  • BRONZE-BEZEL

    BASE CLOCK KIT DIAL

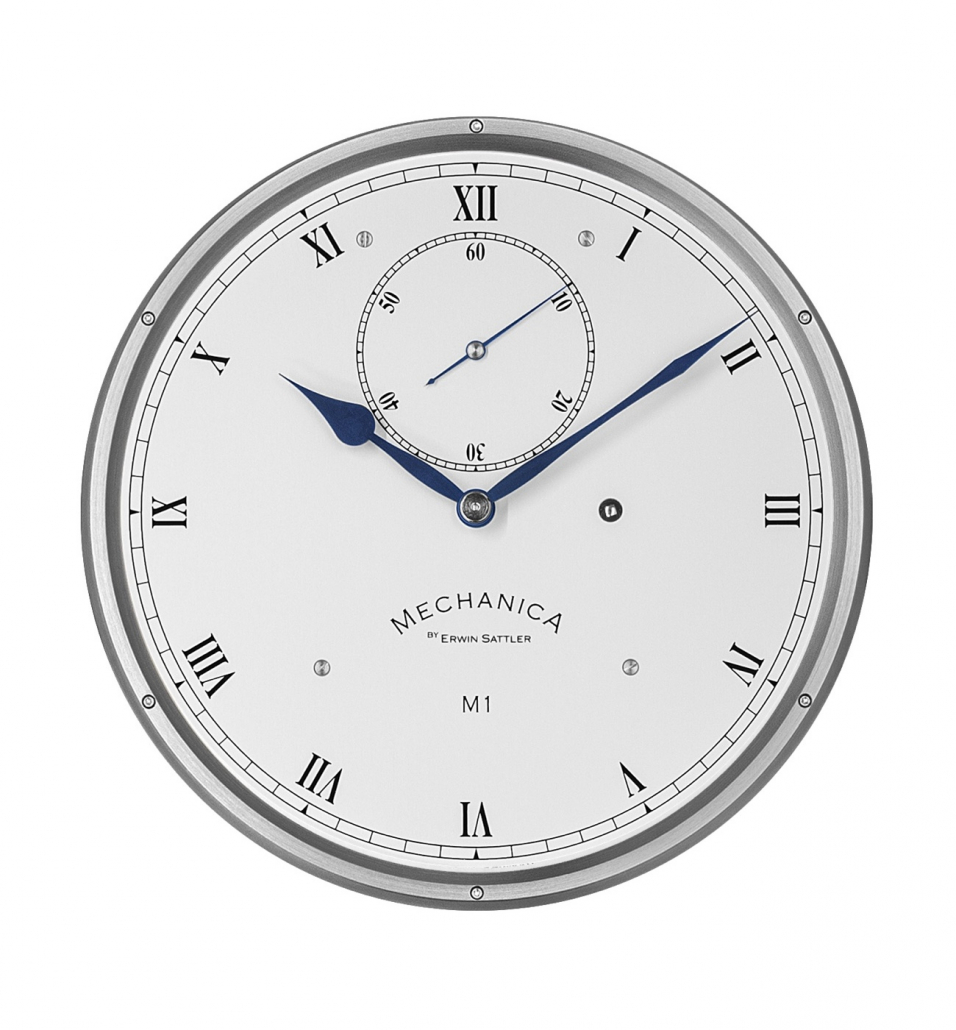

  • NICKEL-BEZEL

    BASE CLOCK KIT DIAL

  • ASSEMBLY

    We offer you extras under the heading “Upgrades” an.

PreviousNext
1234567891011
Black varnish

Black varnish

M1 Grundbausatz Schwarz

Walnut

Walnut

M1 Grundbausatz Nussbaum
Cherry

Cherry

M1 Grundbausatz Kirschbaum

BASE CLOCK KIT MECHANICA M1

  • 5/6 precision pendulum clock
  • 30 days power reserve

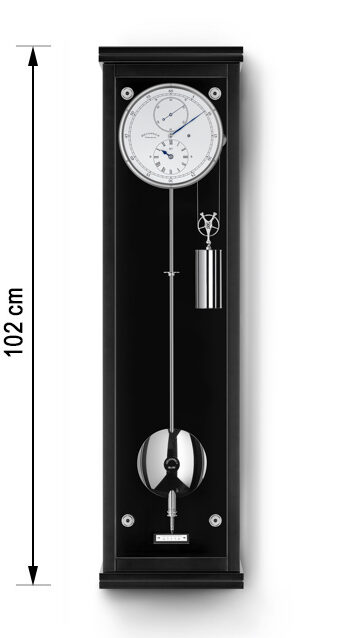

  • Dimensions: 1020 mm (40 inches) x 270 mm (10.6 inches) x 145 mm (5.7 inches)
  • Very fine crossed out wheels, milled, polished and gold plated
  • Pinions of hardened steel with 12, 14 and 16 teeth
  • All gears equipped with miniature ball bearings of stainless steel mounted on plates (10 units)
  • Plates are made of 4mm thick anodised aluminium
  • Graham escapement with hardened, adjustable steel pallets
  • 5/6 seconds invar pendulum (temperature compensated)
  • Solid stainless steel or brass pendulum weight
  • Driving weight of pure tungsten, 3000g with pulley
  • Hands of steel, handmade and blued
  • Accuracy +/-3-4 sec. per month
  • On demand a metal plate with your name
M1
Zusammenbau Bausatz
Mechanica
Mechanica
Mechanica
Zifferblatt Bronze
Zifferblatt Nickel
Mechanica

MECHANICA M1 ASSEMBLY UPGRADES AND INSTRUCTIONS

ANKER MIT ACHATPALETTEN

UPGRADE KIT

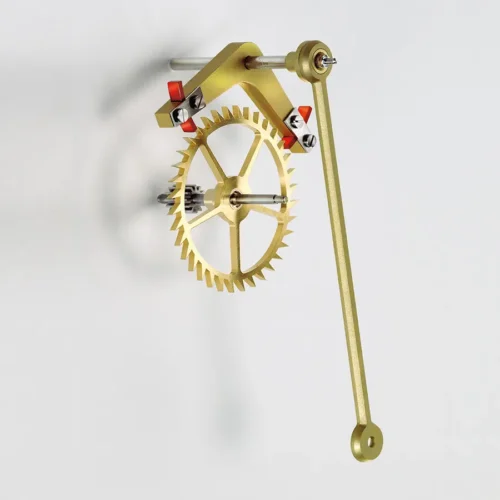

ESCAPEMENT LEVER WITH AGATE PALLETS AND ESCAPEMENT WHEEL

To reduce friction in the escapement, an option is to upgrade your clock with an escapement lever with agate pallets and matching escapement wheel.

Price 700,– Euro
Reduced Price 570.– Euro*

RUBINLOCHSTEINE FÜR ANKERLAGERUNG

UPGRADE KIT

RUBIES FOR THE ESCAPEMENT LEVER BEARINGS

The longevity of the M1 can be enhanced with a set of rubies for the escapement lever bearings. The standard brass bushings will be replaced with non-wearing ruby bearings.

Price 180,– Euro

UPGRADE KIT

HAND-DOMED AND POLISHED HANDS

The domed, polished and blued hands are completely hand crafted. They will give your Mechanica a more elegant “face”. Available for standard and regulator dial.

Price 560,– Euro
Reduced Price 520,– Euro*

UPGRADE KIT

BEVELLED GLASSES

All three panes of glass have polished bevelled edges that lend the case even more elegance.

Price 410,– Euro

UPGRADE KIT

BAROMETRIC INSTRUMENT

To compensate the negative influence of changing air pressure a barometric instrument with aneroids can be delivered. This upgrade is a must to increase the accuracy of your Mechanica.

Price 780,– Euro

UPGRADE KIT

PULLEY WITH BALL BEARINGS

The ball-bearing rope pulley offers not only visual appeal but also two technical advantages: Its ball bearings do not wear and they keep frictional losses to a minimum, which improves the accuracy of the clock.

Price 335,– Euro
Reduced Price 300,– Euro*

UPGRADE KIT

SATTLER VARNISH

The quality of the standard varnish can be increased by applying much more layers of high quality resin-varnish which is sanded several times. This surface has a higher hardness and a deeper black color.

.

Price 750,– Euro

CERTIFICATED WEIGHTS FOR FINE REGULATION

With the certificated set of twelve weights an even more exact fine regulation is possible.

Price without wooden case 175,– Euro
Elegant wooden case with magnetic closure 95,– Euro

Details

UPGRADE KIT

ADJUSTABLE PENDULUM SCALE

A horizontally adjustable pendulum scale. The kit allows to adjust the pendulum tip precisely to zero.

Price 290,– Euro

UPGRADE KIT

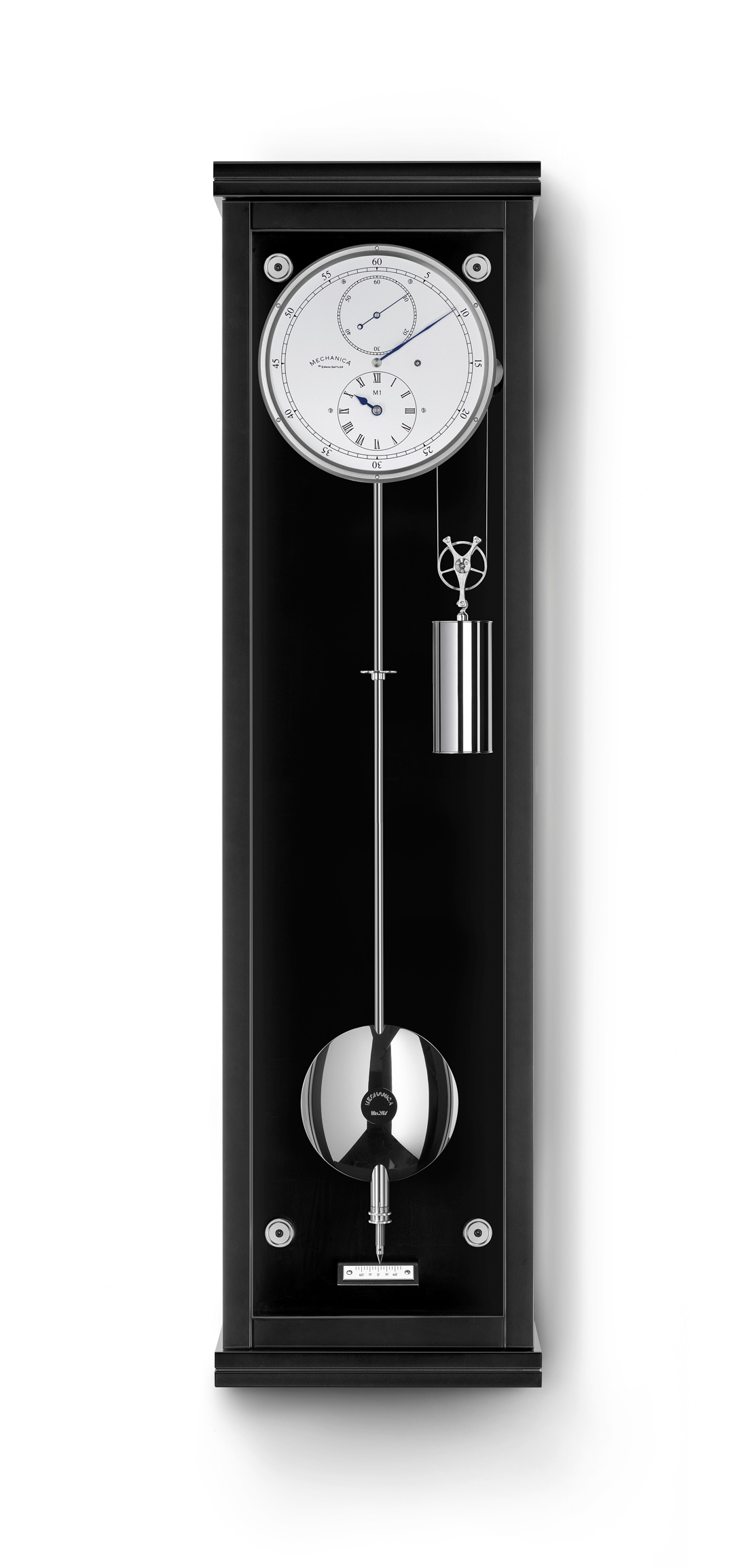

PENDULUM LENS

A solid pendulum lens can be ordered as an optional extra for the pendulum. The fact that there is less air resistance means that the amplitude of oscillation, and consequently the rate, remain steadier. The lenses are numbered in sequence and can be fitted with the engraving either at the front or at the back. The lens is available in bronze or nickel finish.

Price 760,– Euro
Reduced Price 700,– Euro*

UPGRADE KIT

POLISHED CASE-HOLDING SCREWS

A further detail to add an elegant appearance to your M1, are the four case fitting screws with polished and blued
center and two polished movement fixing screws.

Price 260,– Euro
Reduced Price 240,– Euro*

UPGRADE KIT

GLASS WINDOW IN THE TOP OF THE CASE

Incorporating a pane of mineral glass into the top allows a spotlight to illuminate the movement.

Price 420,– Euro

M1_Tuning-REGULATOR-ANZEIGE

UPGRADE KIT

REGULATOR DIAL

The design is similar to the classic precision pendulum clocks from the last century and comes very close to the actual Model Classica Secunda 1985 by Erwin Sattler. The kit includes the dial, an intermediate plate, three additional wheels and hands (the domed hands in the picture are another upgrade).

Price 620,– Euro
Reduced Price 520,– Euro*

M1_Tuning-DURCHBRUCH-IM-NORMALEN-BZW.-REGULATOR-ZIFFERBLATT-2

UPGRADE KIT

CUTAWAY IN THE NORMAL OR REGULATOR DIAL

The upgrade kit “cutaway in the regulator dial” can only be ordered in combination with the upgrade kit “regulator dial”. The cutaway in the seconds subdial in conjunction with a milling in the top plate of the movement makes it possible to see the gold-plated gear wheels and the Graham escapement. The modified set contains the dial with cutaway as well as the top plate with its special milling.

Price 900,– Euro
Reduced Price 780,– Euro*

UPGRADE KIT

SET OF FINE-POLISHED SCREWS

The look of the movement can be further enhanced using these 4 gold-plated washers and the 24 fine-polished/fine-turned stainless-steel screws.

Price 270,– Euro
Reduced Price 260,– Euro*

.

ASSEMBLY BY THE MANUFACTURE

Optionally an experienced clockmaker from Erwin Sattler assembles the clock kit for you.

Price 600,- Euro

In the „clock book“ that comes with every kit, you can read more about evolution and technology of mechanic clocks. Linen bound and printed on high quality paper.

Lean back and take some time. A complete version of the book is available as PDF. The first chapter is the complete instruction. The second chapter explains the technology and function of the Mechanica M1.

In order to give you the opportunity to technically and optically upgrade your new Mechanica M1, various accessories were already considered when planning the kit. With the following extras you can individualize your Mechanica M1 in the areas of durability, accuracy and optics.

PDF The Clock Book | 4 MB

UpgradesPrice list VideoOrder Forms Contact

MECHANICA M1
Basic clock kit

Price list

Mechanica M1

MECHANICA M1 PriceReduced Price*
MECHANICA M1 Clock kit | Black Varnish
€ 5500.-
MECHANICA M1 Clock kit | Cherry or Walnut€ 5000.-
UPGRADE KIT ESCAPEMENT LEVER WITH AGATE PALLETS AND ESCAPEMENT WHEEL
To reduce friction in the escapement, an option is to upgrade your clock with an escapement lever with agate pallets and matching escapement wheel.
€ 700.-570,– Euro
UPGRADE KIT RUBIES FOR THE ESCAPEMENT LEVER BEARINGS
The longevity of the M1 can be enhanced with a set of rubies for the escapement lever bearings. The standard brass bushings will be replaced with non-wearing ruby bearings.
€ 180.-
UPGRADE KIT HAND-DOMED AND POLISHED HANDS
The domed, polished and blued hands are completely hand crafted. They will give your Mechanica a more elegant “face”.
€ 560.- € 520.-
UPGRADE KIT BEVELLED GLASSES
All three panes of glass have polished bevelled edges that lend the case even more elegance.
€ 410.-
UPGRADE KIT BAROMETRIC INSTRUMENT
To compensate the negative influence of changing air pressure a barometric instrument with aneroids can be delivered. This upgrade is a must to increase the accuracy of your Mechanica.
€ 780.-
UPGRADE KIT PULLEY WITH BALL BEARINGS
The ball-bearing rope pulley offers not only visual appeal but also two technical advantages: Its ball bearings do not wear and they keep frictional losses to a minimum, which improves the accuracy of the clock.
€ 335.-€ 300.-
UPGRADE KIT SATTLER VARNISH
Possibility to equip the case of the Mechanica M1 with a more exclusive surface.
€ 750.-
CERTIFICATED WEIGHTS FOR FINE REGULATION
With the certificated set of twelve weights an even more exact fine regulation is possible
Price without wooden case 175,– Euro
Elegant wooden case with magnetic closure 95,– Euro
UPGRADE KIT ADJUSTABLE PENDULUM SCALE
A horizontally adjustable pendulum scale. The kit allows to adjust the pendulum tip precisely to zero.
€ 290.-
UPGRADE KIT PENDULUM LENS
A solid pendulum lens can be ordered as an optional extra for the
pendulum. The fact that there is less air resistance means that the
amplitude of oscillation, and consequently the rate, remain steadier. The lenses are numbered in sequence and can be fitted with the engraving either at the front or at the back. The lens is available in bronze or nickel finish.
€ 760.-700.-
UPGRADE KIT POLISHED CASE-HOLDING SCREWS
A further detail to add an elegant appearance to your M1, are the four case fitting screws with polished and blued center and two polished movement fixing screws.
€ 260.-€ 240.-
UPGRADE KIT GLASS WINDOW IN THE TOP OF THE CASE
Incorporating a pane of mineral glass into the top allows a spotlight to
illuminate the movement.
€ 420.-
UPGRADE KIT SET OF FINE-POLISHED SCREWS
The look of the movement can be further enhanced using these 4 gold-plated washers and the 24 fine-polished/fine-turned stainless-steel screws.
€ 270.- € 260.-
UPGRADE KIT REGULATOR DIAL
The design is similar to the classic precision clocks from the last century and comes very close to the actual Model Classica Secunda 1985 by Erwin Sattler. The kit includes the dial, an intermediate plate, three additional wheels with a new counterweight for the minute hand, a new hour, minute and a new second hand (the domed hands in the picture are another upgrade).
€ 620.-€ 520.-
UPGRADE KIT CUTAWAY IN THE NORMAL OR REGULATOR DIAL
The upgrade kit “cutaway in the regulator dial” can only be ordered in combination with the upgrade kit “regulator dial”. The cutaway in the seconds subdial in conjunction with a milling in the top plate of the movement makes it possible to see the gold-plated gear wheels and the Graham escapement. The modified set contains the dial with cutaway as well as the top plate with its special milling.
€ 900.-€ 780.-
ASSEMBLY BY THE MANUFACTURE€ 600.-

Prices incl. 19% VAT.
(* Reduced price – new order with retention/return of standard parts.)

Mechanica M1

Price List

  • MECHANICA M1 Clock kit | Black Varnish
    € 5100.-
  • MECHANICA M1 Clock kit | Cherry or Walnut
    € 4600.-
  • UPGRADE KIT ESCAPEMENT LEVER WITH AGATE PALLETS AND ESCAPEMENT WHEEL
    € 650.- | reduced price* 530,– Euro
  • UPGRADE KIT RUBIES FOR THE ESCAPEMENT LEVER BEARINGS
    € 165.-
  • UPGRADE KIT HAND-DOMED AND POLISHED HANDS
    € 520.- | reduced price* € 480.-
  • UPGRADE KIT BEVELLED GLASSES
    € 380.-
  • UPGRADE KIT BAROMETRIC INSTRUMENT
    € 720.-
  • UPGRADE KIT PULLEY WITH BALL BEARINGS
    € 310.- | reduced price* € 280.-
  • UPGRADE KIT SATTLER VARNISH
    € 690.-
  • CERTIFICATED WEIGHTS FOR FINE REGULATION
    Price without wooden case 165,– Euro
    Elegant wooden case with magnetic closure 85,– Euro
  • UPGRADE KIT ADJUSTABLE PENDULUM SCALE
    € 270.-
  • UPGRADE KIT PENDULUM LENSE
    € 700.- | reduced price* 640.-
  • UPGRADE KIT POLISHED CASE-HOLDING SCREWS
    € 390.-
  • UPGRADE KIT SET OF FINE-POLISHED SCREWS
    € 250.- | reduced price* € 240.-
  • UPGRADE KIT REGULATOR DIAL
    € 580.- | reduced price* € 480.-
  • UPGRADE KIT CUTAWAY IN THE NORMAL OR REGULATOR DIAL
    € 840.- | reduced price* € 720.-
  • ASSEMBLY BY THE MANUFACTURE
    € 500.-

Prices include 19% value added tax. Delivery within Germany is free of charge.
(*Reduced price if the faultless original parts are returned or if a new order is placed)

Order forms

Mechanica M1

PDF order form for the clock kit Mechanica M1

New orders, optionally with accessories, reduced prices with retention/return of standard parts

PDF order form for the clock kit Mechanica M1

New order, optionally with accessories, regular prices without retention/return of the standard parts

Terms and conditions

Order forms

Mechanica M1

PDF order form with calculation function for the clock kit Mechanica M1

New orders, optionally with accessories, reduced prices with retention/return of standard parts

PDF order form with calculation function for the clock kit Mechanica M1

New order, optionally with accessories, regular prices without retention/return of the standard parts

Order forms for Safari users

(the calculation function is not supported by Safari!)
Mechanica M1

PDF order form without calculation function for the clock kit Mechanica M1

New orders, optionally with accessories, reduced prices with retention/return of standard parts

PDF order form without calculation function for the clock kit Mechanica M1

New order, optionally with accessories, regular prices without retention/return of the standard parts

Terms and conditions
