• M4

MECHANICA

M4

Price base clock kit
Black varnish
5.300,- Euro

Price base clock kit
Cherry or Walnut
4.800,- Euro

The Mechanica M4 is a precision pendulum clock that comes with all the hallmarks of quality that characterise its great predecessors.

Some of the characteristic elements include a temperature-compensated Invar pendulum, hardened steel pinions and milled gold-plated gear wheels.

Thanks to the use of stainless steel ball bearings and premium-quality materials, combined with the special design details, the Mechanica M4 can be assembled without any need for previous clock-making experience or additional tools.

Detailed assembly instructions can be found in the “Clock Book”; this manual not only provides a step-by-step guide to ensure that the clock assembly experience is both unique and successful, but also introduces the customer to the technical aspects of their Mechanica M4’s inner workings.

Customisation can be achieved with various upgrade kits: These allow the customer to transform the face of their Mechanica M4 into a regulator dial and further enhance it if they wish by adding hand-domed and polished hands. The upgrade kits on offer also include a ball-bearing rope pulley, polished screws and a double cylinder pendulum.

  • BASE CLOCK KIT

    MECHANICA M4

    In cherry, walnut or black varnish with bronze or nickel finish

    5/7 precision pendulum clock, winding period of 14days, gold-plated brass gear wheels, hardened steel pinions, escapement lever with agate pallets, all wheels are fitted in ten stainless-steel miniature ball bearings, high-strength aluminium frame with long-lasting surface protection provided by a layer of extra-hard anodised aluminium, anodised aluminium dial, bezel turned from solid brass, polished and nickel-plated to a shiny finish. bezel can alternatively be turned from solid bronze and given a baked enamel finish, blued steel hands, upon request, we can provide you with a metal plate engraved with your name to show each and every admirer who made this stunning timepiece.
    Dimensions: 760 x 230 x 140 mm (H x W x D)

    Upgraded with a pulley with ball bearings, double cylinder pendulum, hand-domed hands, finepolished screws and polished case-holding screws.

    We offer you Upgrades

  • BASE CLOCK KIT

    MECHANICA M4 CHERRY

    5/7 precision pendulum clock, winding period of 14days, gold-plated brass gear wheels, hardened steel pinions, escapement lever with agate pallets, all wheels are fitted in ten stainless-steel miniature ball bearings, high-strength aluminium frame with long-lasting surface protection provided by a layer of extra-hard anodised aluminium, anodised aluminium dial, bezel turned from solid brass, polished and nickel-plated to a shiny finish. bezel can alternatively be turned from solid bronze and given a baked enamel finish, blued steel hands, upon request, we can provide you with a metal plate engraved with your name to show each and every admirer who made this stunning timepiece.
    Dimensions: 760 x 230 x 140 mm (H x W x D)

    Upgraded with a pulley with ball bearings, double cylinder pendulum, hand-domed hands, finepolished screws and polished case-holding screws.

    We offer you Upgrades

  • BASE CLOCK KIT

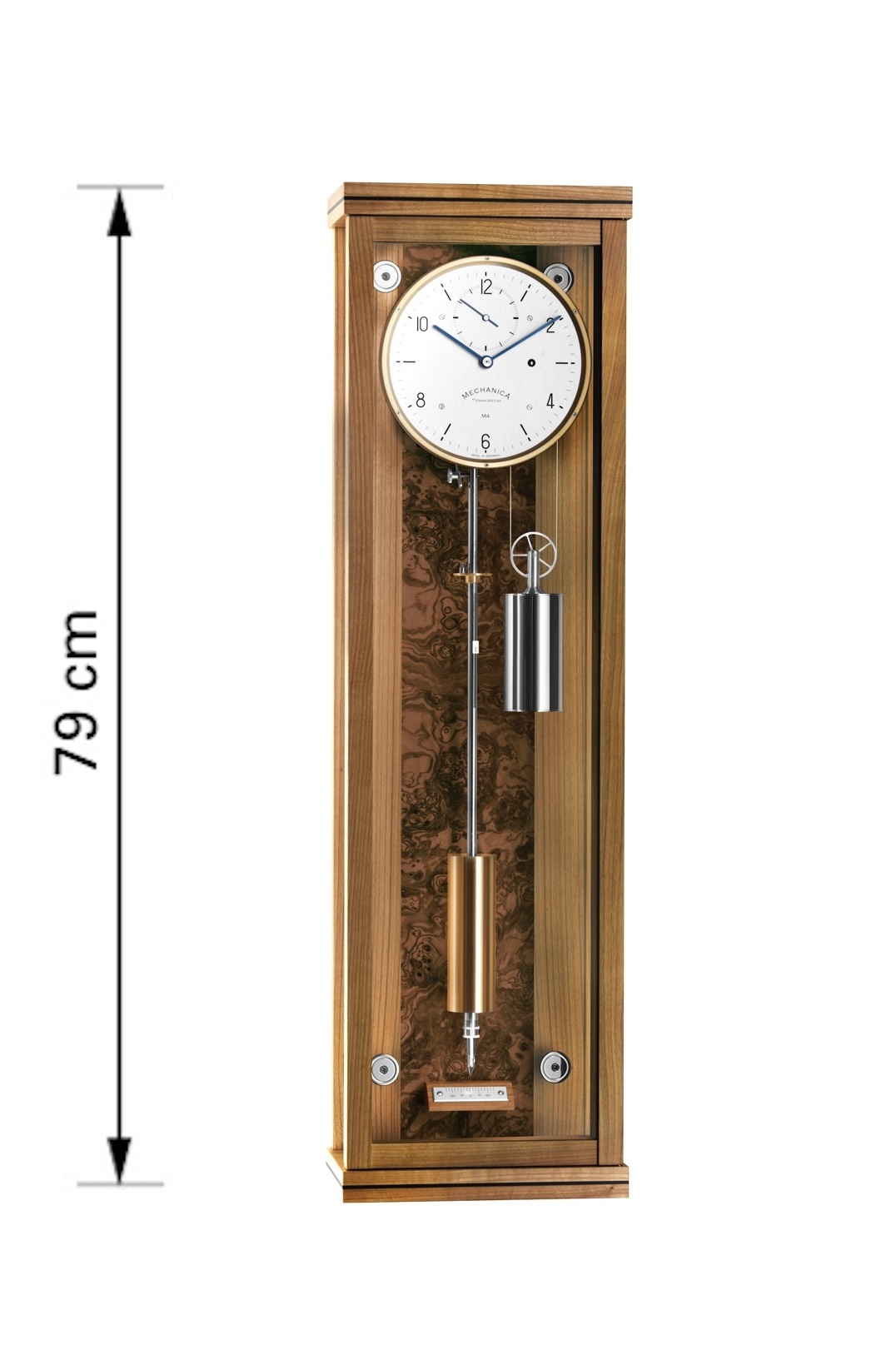

    MECHANICA M4 WALNUT

    5/7 precision pendulum clock, winding period of 14days, gold-plated brass gear wheels, hardened steel pinions, escapement lever with agate pallets, all wheels are fitted in ten stainless-steel miniature ball bearings, high-strength aluminium frame with long-lasting surface protection provided by a layer of extra-hard anodised aluminium, anodised aluminium dial, bezel turned from solid brass, polished and nickel-plated to a shiny finish. bezel can alternatively be turned from solid bronze and given a baked enamel finish, blued steel hands, upon request, we can provide you with a metal plate engraved with your name to show each and every admirer who made this stunning timepiece.
    Dimensions: 760 x 230 x 140 mm (H x W x D)

    Upgraded with a pulley with ball bearings, double cylinder pendulum, hand-domed hands, finepolished screws and polished case-holding screws.

    We offer you Upgrades

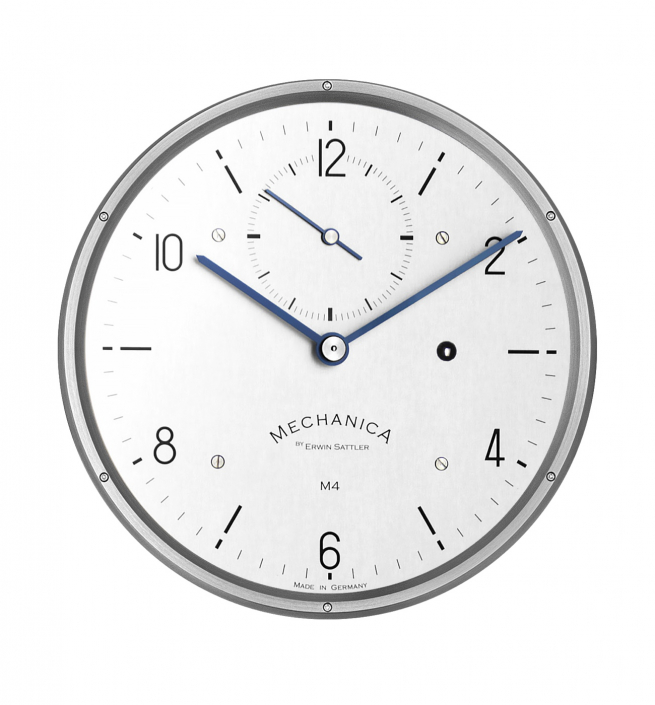

  • NICKEL-BEZEL NORMAL MODERN

    BASE CLOCK KIT DIAL

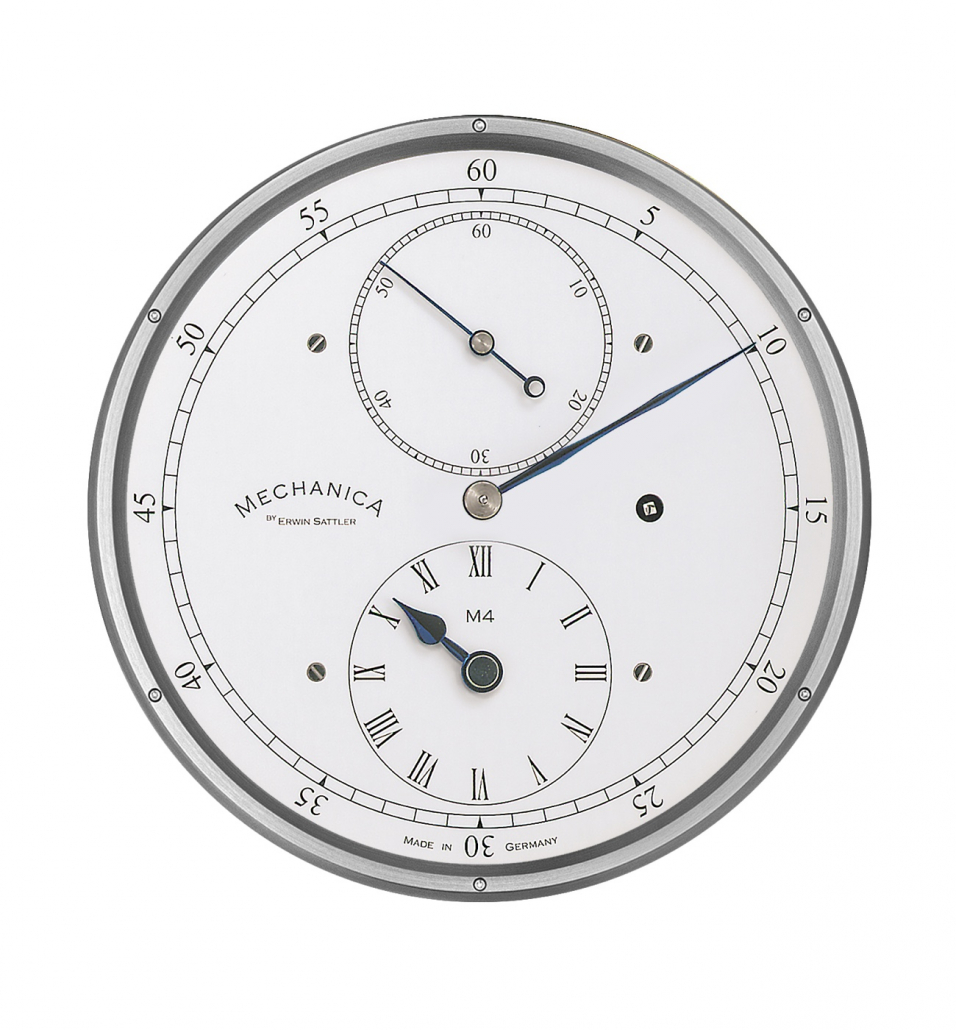

  • NICKEL-BEZEL, REGULATOR

    BASE CLOCK KIT DIAL

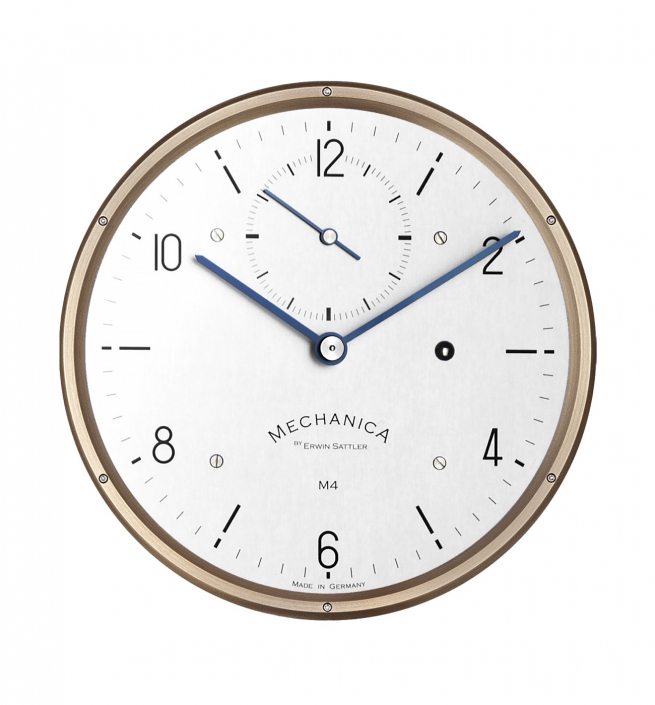

  • BRONZE-BEZEL, NORMAL MODERN

    BASE CLOCK KIT DIAL

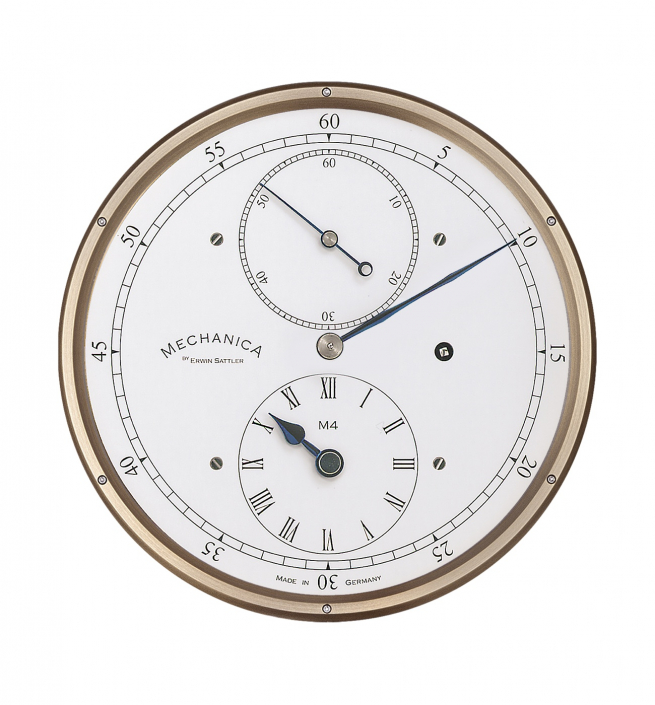

  • BRONZE-BEZEL, REGULATOR

    BASE CLOCK KIT DIAL

  • Easy assembly of the case parts.

  • Easy assembly of the parts.

RUBINLOCHSTEINE FÜR ANKERLAGERUNG

UPGRADE KIT

RUBIES FOR THE ESCAPEMENT LEVER BEARINGS

The longevity of the M4 can be enhanced with a set of rubies for the escapement lever bearings. The standard brass bushings replaced through non-wearing ruby perforated bricks.

Price 180,– Euro

M1_Tuning Kit KUGELGELAGERTE SEILROLLE

UPGRADE KIT

PULLEY WITH BALL BEARINGS

The ball-bearing rope pulley offers not only visual appeal but also two technical advantages: Its ball bearings do not wear and they keep frictional losses to a minimum, which improves the accuracy of the clock.

Price 335,– Euro
Reduced Price 300,– Euro*

UPGRADE KIT

HAND-DOMED AND POLISHED HANDS

The hands have been painstakingly “domed”, polished and blued by hand to lend the dial even greater elegance.

Price 560,– Euro
Reduced Price 520,– Euro*

M4 Zeiger

UPGRADE KIT

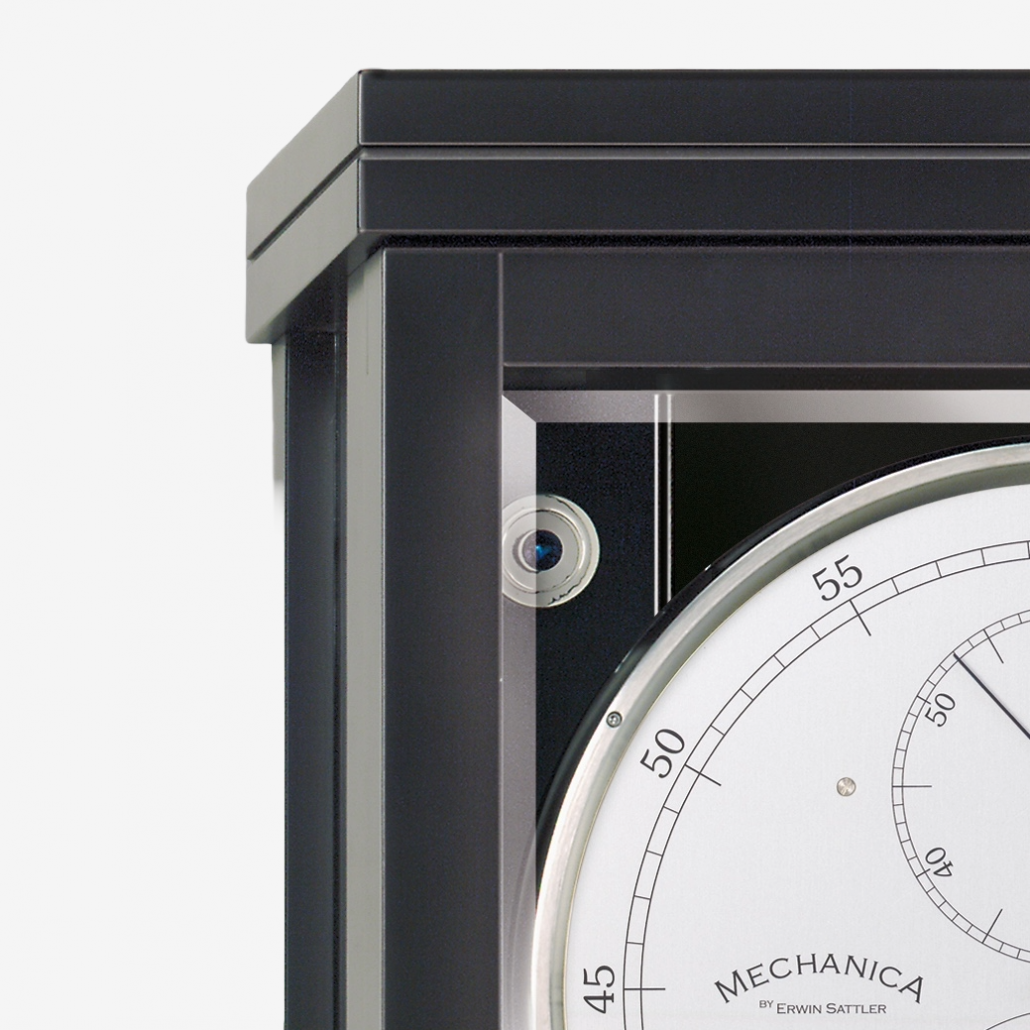

BEVELLED GLASSES

All three panes of glass have polished bevelled edges that lend the case even more elegance.

Price 410,– Euro

M4 Zubehoer Facettierte Scheiben
M1_Tuning POLIERTE KASTENHALTESCHRAUBEN

UPGRADE KIT

POLISHED CASE-HOLDING SCREWS

A further detail to add an elegant appearance to your M4, are the four case fitting screws with polished and blued center and two polished movement fixing screws.

Price 260,– Euro
Reduced Price 240,– Euro*

M4 Zubehoer Feinpolierter-Schraubensatz

UPGRADE KIT

SET OF FINE-POLISHED SCREWS

The look of the movement can be further enhanced using these 8 gold-plated washers and the 30 fine-polished/fine-turned stainless-steel screws.

Price 290,– Euro
Reduced Price 280,– Euro*

UPGRADE KIT

SATTLER VARNISH

The quality of the standard varnish can be increased by applying much more layers of high quality resin-varnish which is sanded several times. This surface has a higher hardness and a deeper black color.

Price 750,– Euro

M1_Tuning Kit SATTLER-LACK

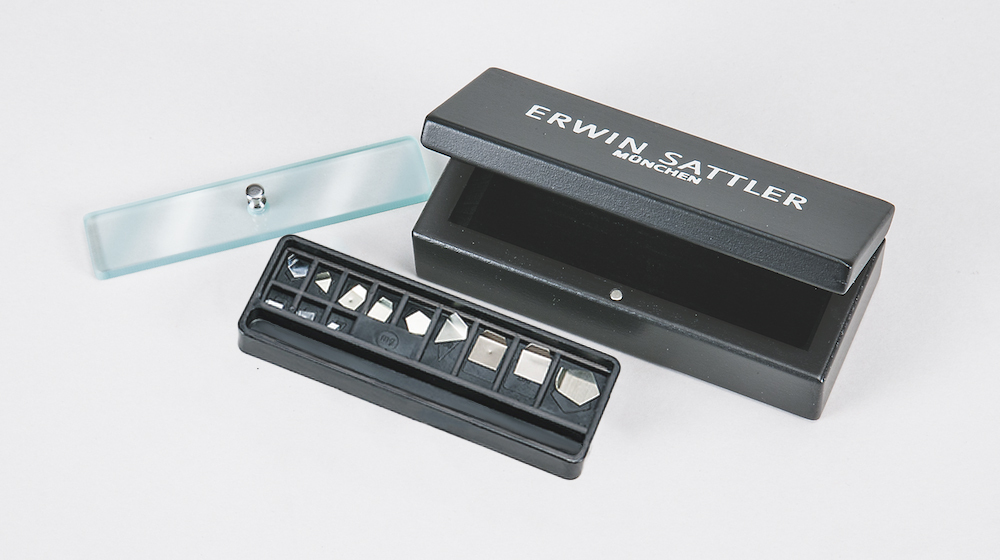

CERTIFICATED WEIGHTS FOR FINE REGULATION

With the certificated set of twelve weights an even more exact fine regulation is possible.

Price without wooden case 175,– Euro
Elegant wooden case with magnetic closure 95,– Euro

UPGRADE KIT

CUTAWAY IN THE NORMAL OR REGULATOR DIAL

The cutaway in the seconds subdial in conjunction with a milling in the top plate of the movement makes it possible to see the gold-plated gear wheels and the Graham escapement. The modified set contains the dial with cutaway and serial number as well as the top plate with its special milling.

Price 900,– Euro
Reduced Price 780,– Euro*

Platine mit Vierkant

M1_Tuning JUSTIERBARE PENDELSKALA

UPGRADE KIT

ADJUSTABLE PENDULUM SCALE

A horizontally adjustable pendulum scale. The kit allows to adjust the pendulum tip precisely to zero.

Price 290,– Euro

M1_Tuning GLASDACH

UPGRADE KIT

GLASS WINDOW IN THE TOP OF THE CASE

Incorporating a pane of mineral glass into the top allows a spotlight to illuminate the movement.

Price 420,– Euro

M3

UPGRADE KIT

DOUBLE CYLINDER PENDULUM

According to Ludwig Strasser.
BICOLOR OR NICKEL-PLATED

Price 840,– Euro
Reduced Price 780,– Euro*

M1_Tuning Kit BAROMETERINSTRUMENT

UPGRADE KIT

BAROMETRIC INSTRUMENT

To compensate the negative influence of changing air pressure a barometric instrument with aneroids can be delivered. This upgrade is a must to increase the accuracy of your Mechanica.

Price 780,– Euro

ASSEMBLY BY THE MANUFACTORY

€ 600.-

Buch zur Uhr

In the „clock book“ that comes with every kit, you can read more about evolution and technology of mechanic clocks. Linen bound and printed on high quality paper. Lean back and take some time. A complete version of the book is available as PDF. The first chapter ist he complete instruction. The second chapter explains the technology and function of the Mechanica M4.
In order to give you the opportunity to technically and optically upgrade your new Mechanica M4, various accessories were already considered when planning the kit. With the following extras you can individualize your Mechanica M4 in the areas of durability, accuracy and optics.

MECHANICA M4
BASE CLOCK KIT

Price list

Mechanica M4

BASE CLOCK KIT MECHANICA M4 Price Reduced Price*
BASE CLOCK KIT MECHANICA M4 | Black varnish€ 5300.-
BASE CLOCK KIT MECHANICA M4 | Cherry, Walnut€ 4800.-
UPGRADE KIT RUBIES FOR THE ESCAPEMENT LEVER BEARINGS
The longevity of the M4 can be enhanced with a set of rubies for the escapement
lever bearings. The standard
€ 180.-
UPGRADE KIT PULLEY WITH BALL BEARINGS
The ball-bearing rope pulley offers not only visual appeal but also two technical
advantages: Its ball bearings do not wear and they keep frictional
losses to a minimum, which improves the accuracy of the clock.
€ 335,-€ 300,-
UPGRADE KIT HAND-DOMED AND POLISHED HANDS
The hands have been painstakingly “domed”, polished and blued by hand to lend the dial even greater elegance.
€ 560.- € 520.-
UPGRADE KIT POLISHED CASE-HOLDING SCREWS
A further detail to add an elegant appearance to your M4, are the four case fitting screws with polished and blued center and two polished movement fixing screws.
€ 260.- € 240.-
UPGRADE KIT DOUBLE CYLINDER PENDULUM
According to Ludwig Strasser.
BICOLOR OR NICKEL-PLATED
€ 840.-€ 780.-
UPGRADE KIT BEVELLED GLASSES
All three panes of glass have polished bevelled edges that lend the case even more elegance.
€ 410.-
UPGRADE KIT BAROMETRIC INSTRUMENT
To compensate the negative influence of changing air pressure a barometric instrument with aneroids can be delivered. This upgrade is a must to increase the accuracy of your Mechanica.
€ 780.-
UPGRADE KIT ADJUSTABLE PENDULUM SCALE
A horizontally adjustable pendulum scale. The kit allows to adjust the pendulum tip precisely to zero.
€ 290.-
UPGRADE KIT SATTLER VARNISH
Possibility to equip the case of the Mechanica M4 with a more exclusive surface.
€ 750.-
UPGRADE KIT CUTAWAY IN THE NORMAL OR REGULATOR DIAL
The cutaway in the seconds subdial in conjunction with a milling in the top plate of the movement makes it possible to see the gold-plated gear wheels and the Graham scapement. The modified set contains the dial with cutaway and serial number as well as the top plate with its special milling.
€ 900.-€ 780.-
CERTIFICATED WEIGHTS FOR FINE REGULATION
With the certificated set of twelve weights an even more exact fine regulation
is possible. Price without wooden case.
€ 175.-
Elegant wooden case with magnetic closure.€ 95,-
UPGRADE KIT SET OF FINE-POLISHED SCREWS
The look of the movement can be further enhanced using these 8 gold-plated washers and the 30 fine-polished/fine-turned stainless-steel screws.
€ 290,-€ 280,-
UPGRADE KIT GLASS WINDOW IN THE TOP OF THE CASE
Incorporating a pane of mineral glass into the top allows a spotlight to illuminate the movement.
€ 420.-
ASSEMBLY BY THE MANUFACTORY
€ 600.-

Prices include 19% value added tax.
(*Reduced price – new order with retention/return of standard parts.)

Mechanica M4

Price list

MECHANICA M4 Clock kit | BLACK VARNISH
€ 4900.-

MECHANICA M4 Clock kit | Cherry or Walnut
€ 4400.-

UPGRADE KIT RUBIES FOR THE ESCAPEMENT LEVER BEARINGS
€ 165.-

UPGRADE KIT PULLEY WITH BALL BEARINGS
€ 310,- | reduced price* € 280,-

UPGRADE KIT HAND-DOMED AND POLISHED HANDS
€ 520.- | reduced price* € 480.-

UPGRADE KIT SET OF FINE-POLISHED SCREWS
€ 270.- | reduced price* € 260.-

UPGRADE KIT POLISHED CASE-HOLDING SCREWS
€ 240.- | reduced price* € 220.-

UPGRADE KIT DOUBLE CYLINDER PENDULUM
According to Ludwig Strasser.
BICOLOR OR NICKEL-PLATED
€ 780.- | reduced price* € 720.-

UPGRADE KIT BEVELLED GLASSES
€ 380.-

UPGRADE KIT BAROMETRIC INSTRUMENT
€ 720.-

UPGRADE KIT ADJUSTABLE PENDULUM SCALE
€ 270.-

SATTLER VARNISH
€ 690.-

UPGRADE KIT CUTAWAY IN THE NORMAL OR REGULATOR DIAL
€ 840.- | reduced price* € 720.-

CERTIFICATED WEIGHTS FOR FINE REGULATION
€ 165.- | reduced price* € 85.-

GLASS WINDOW IN THE TOP OF THE CASE
€ 390.-

ASSEMBLY BY THE MANUFACTORY
€ 500.-

Prices include 19% value added tax. Delivery within Germany is free of charge.
(*Reduced price if the faultless original parts are returned or if a new order is placed).

MECHANICA M4

The Mechanica M4 is a precision pendulum clock that comes with all the hallmarks of quality that characterise its great predecessors. Look for yourself….
